Remote Control Planetary Floor Grinder – 680, 750 & 850mm

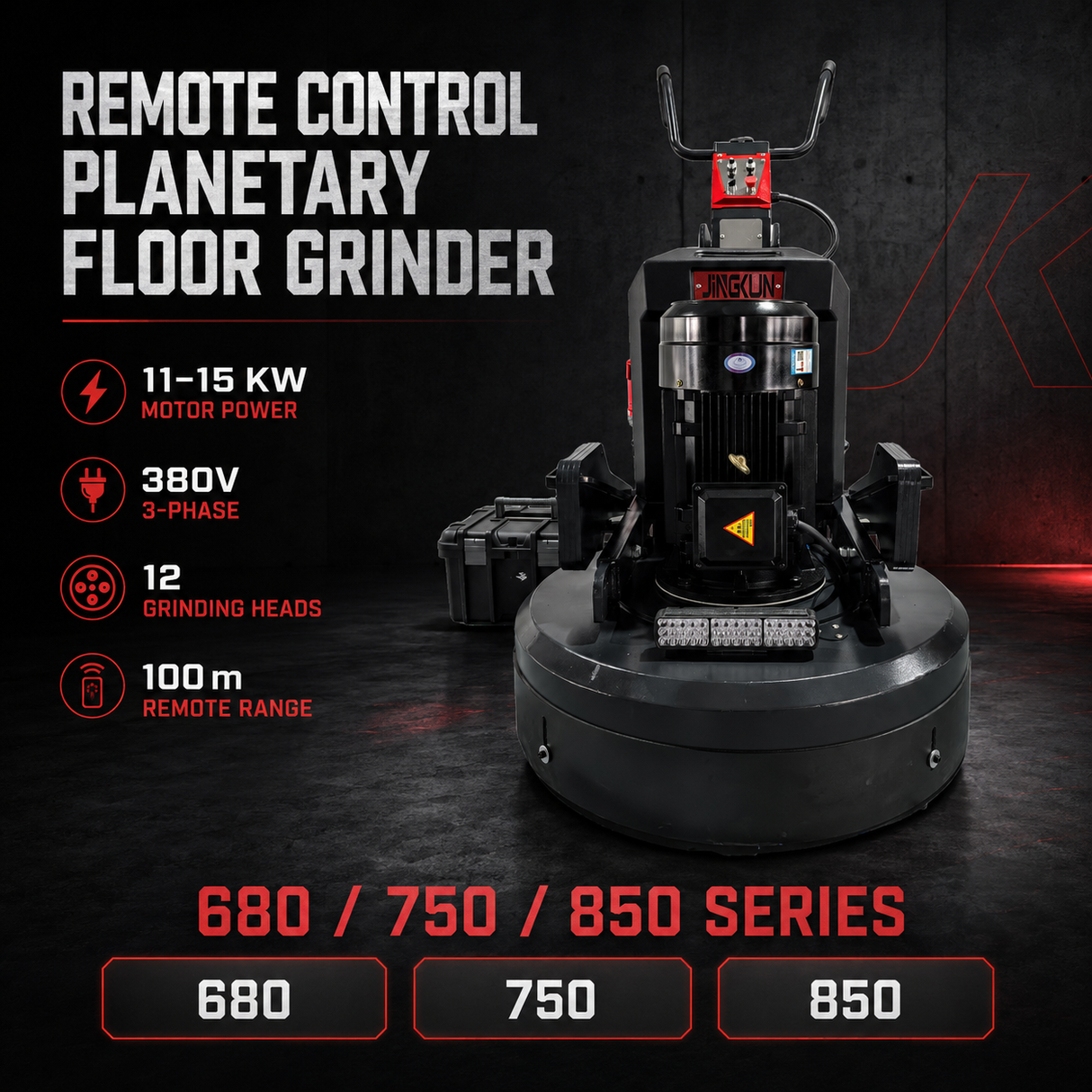

One Grinder Platform. Three Production Widths.
Choose the 680, 750 or 850 model to match your floor area and required output. The range combines 380V three-phase power, a 4 × 3 grinding-head layout and remote-controlled travel for demanding concrete preparation and polishing work.

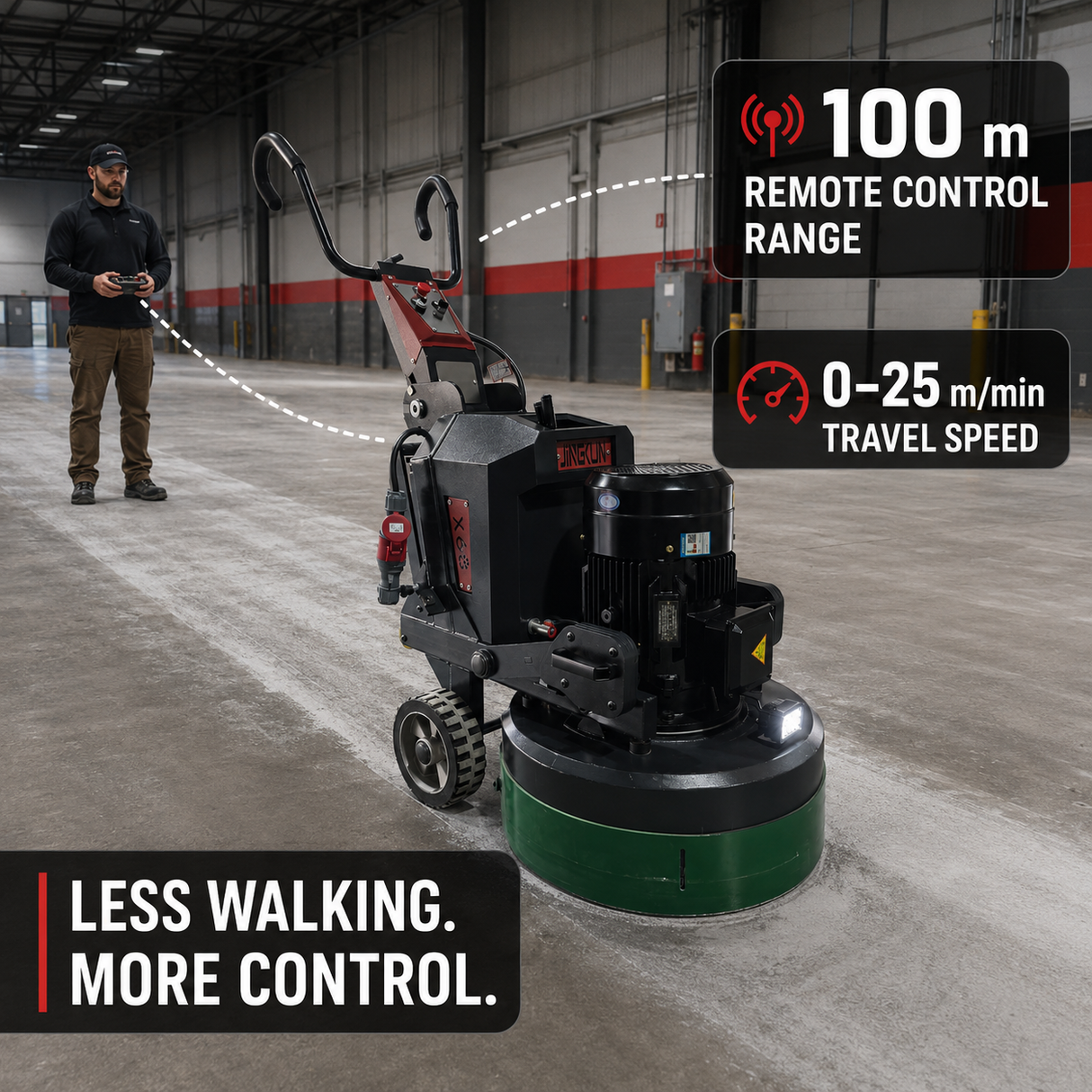

Control Large Floors with Less Operator Fatigue
Remote-controlled travel lets the operator manage machine movement and maintain a clearer view of the grinding path. A manufacturer-rated travel speed of 0–25m/min supports steady progress across large industrial floors.
- Up to 100m remote-control range under suitable open-site conditions
- 0–25m/min travel speed across all three models
- Ergonomic handle and local controls for setup and direct operation
- LED work light improves visibility around the grinding path

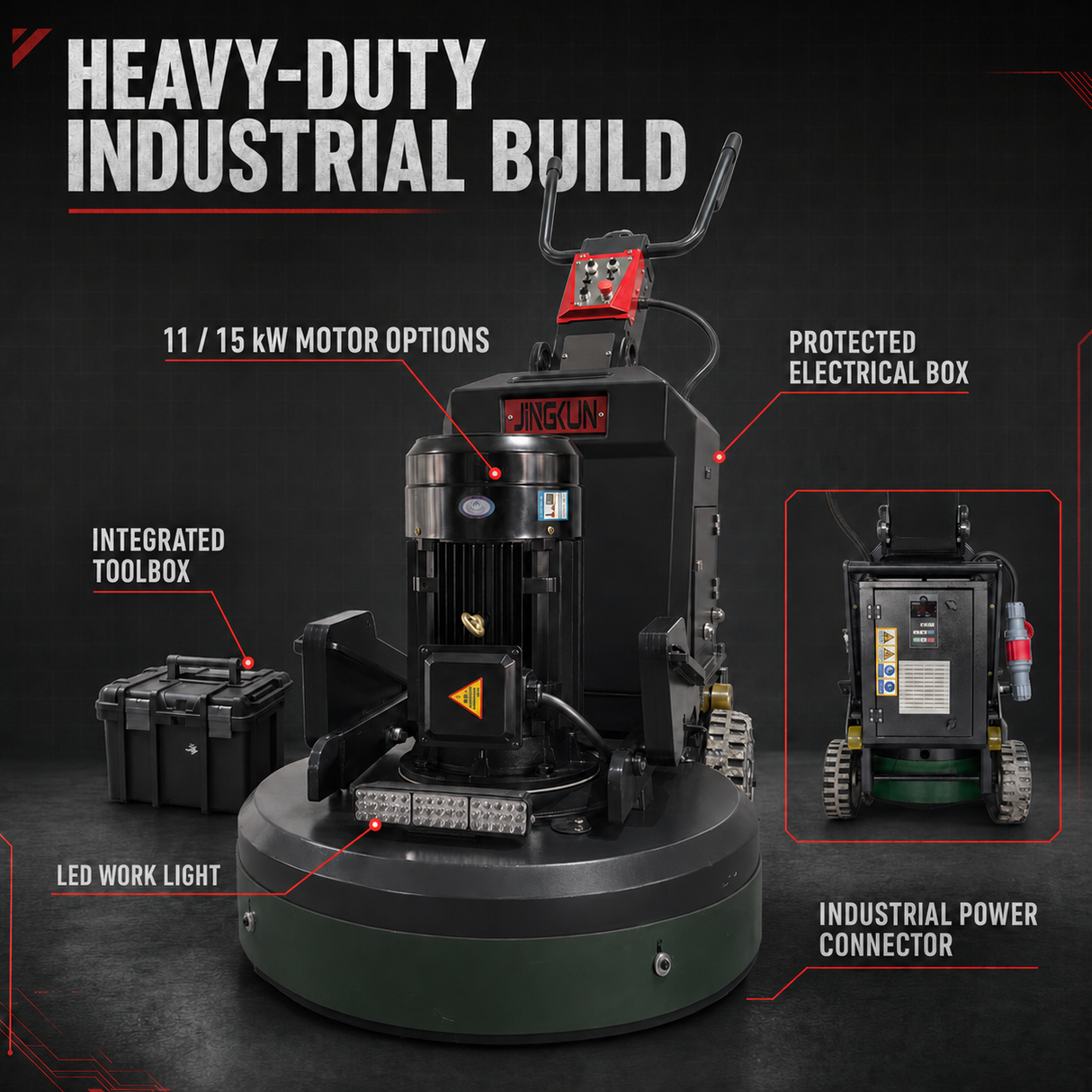

Built for High-Output Floor Preparation
From aggressive surface preparation to progressive polishing, output depends on the selected model, tooling, bond and operating setup.
11kW or 15kW Motor
The 680 uses an 11kW motor; the wider 750 and 850 models use 15kW motors.
4 × 3 Head Configuration
Twelve grinding positions distribute contact across a wide working path.
Variable-Speed Grinding
Model 680: 0–1500rpm. Models 750 and 850: 0–3600rpm manufacturer-listed range.
Heavy Operating Weight
390–560kg operating weight provides a stable platform for demanding grinding work.

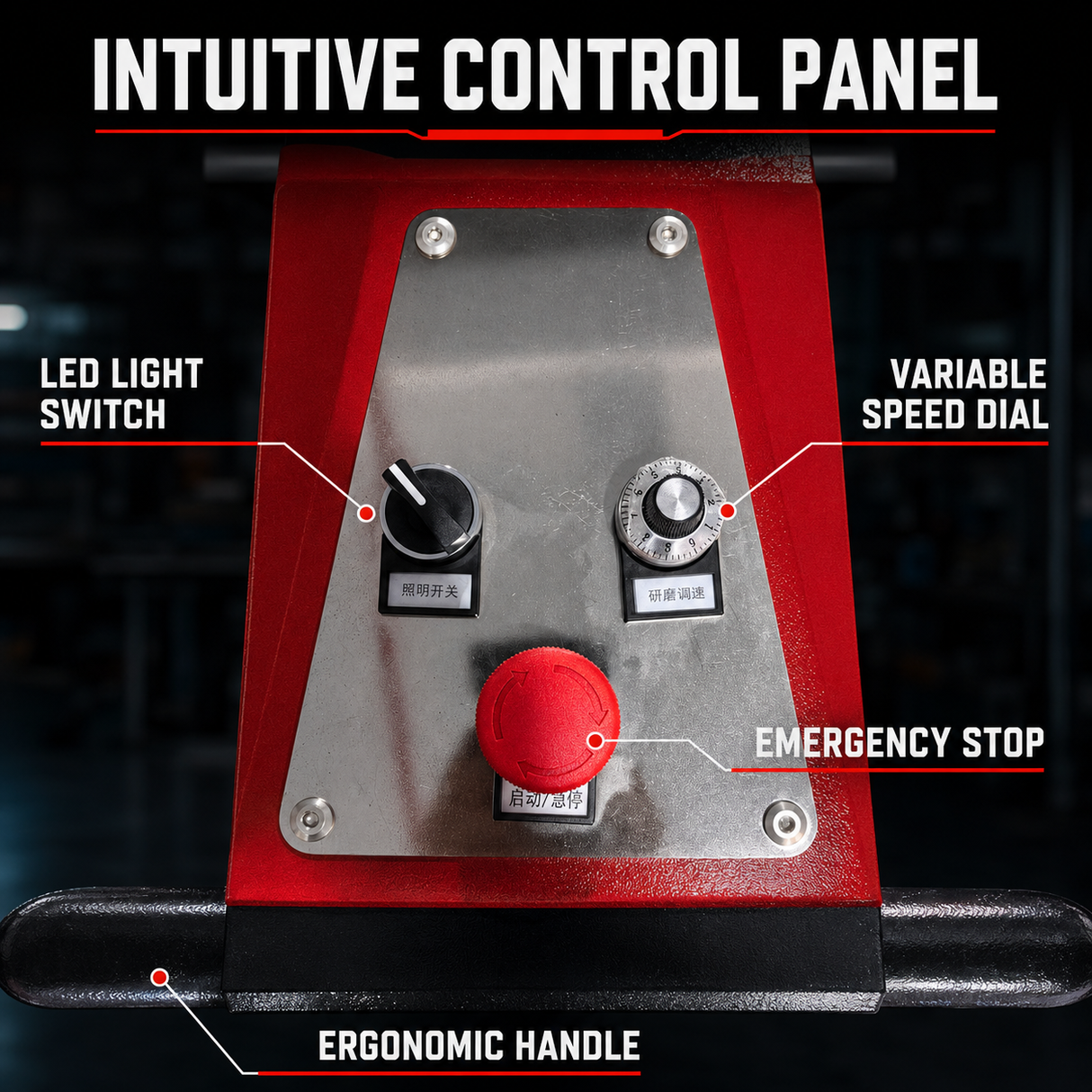

Simple, Visible Machine Controls
The local control panel keeps the essential functions within easy reach. The speed dial supports application-specific adjustment, while the prominent emergency-stop control is easy to identify.
- Separate LED work-light switch
- Clearly marked variable-speed dial
- Large emergency-stop button
- Wide ergonomic maneuvering handle

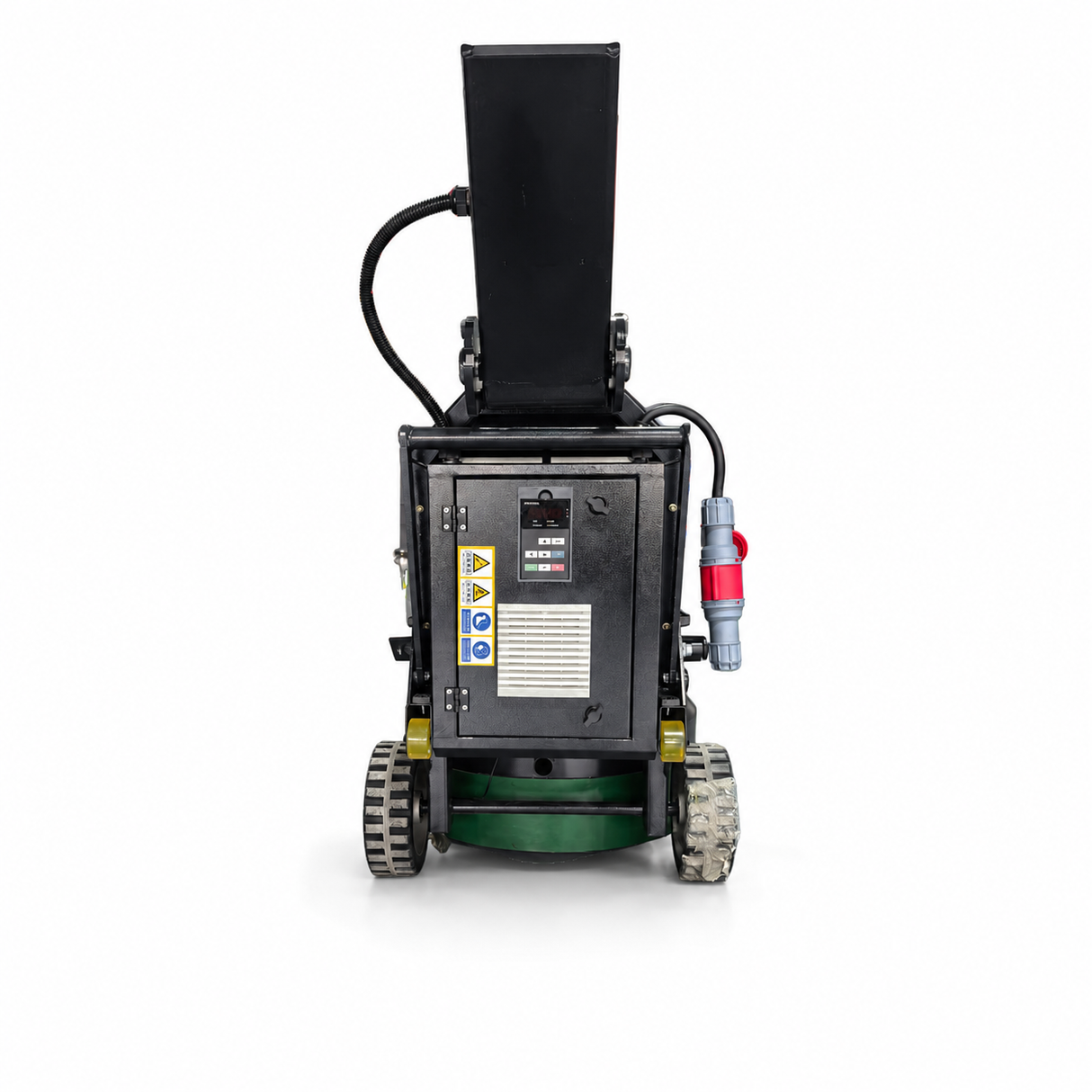

- Protected electrical box and integrated toolbox

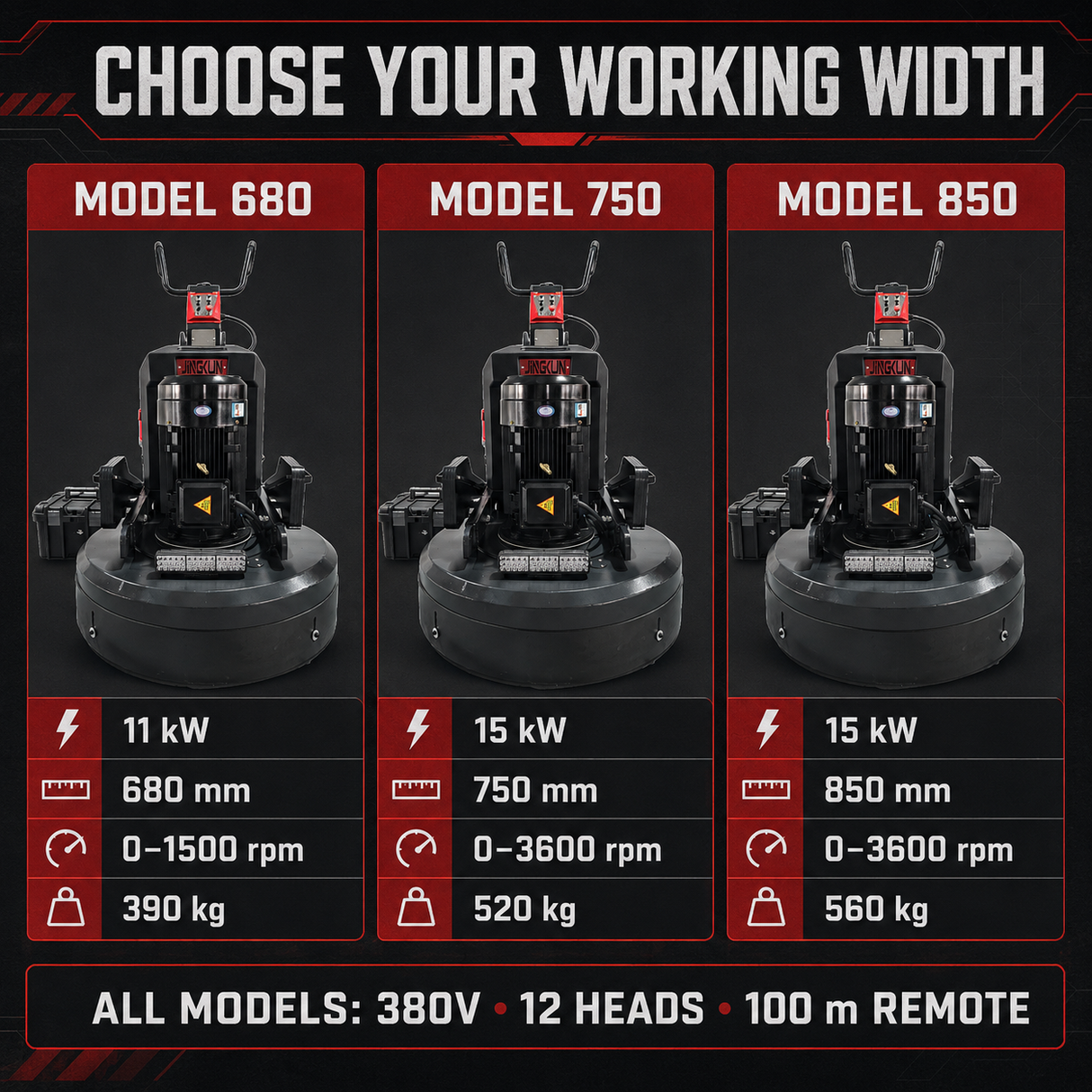

Choose the Right Model
| Specification | Model 680 | Model 750 | Model 850 |
|---|---|---|---|
| Motor power | 11kW | 15kW | 15kW |
| Voltage | 380V | 380V | 380V |
| Working width | 680mm | 750mm | 850mm |
| Listed speed range | 0–1500rpm | 0–3600rpm | 0–3600rpm |
| Grinding heads | 4 × 3 (12) | 4 × 3 (12) | 4 × 3 (12) |
| Remote-control range | Up to 100m | Up to 100m | Up to 100m |
| Travel speed | 0–25m/min | 0–25m/min | 0–25m/min |
| Weight | 390kg | 520kg | 560kg |
| Cable standard | 3 × 6 + 1 × 4 | 3 × 6 + 1 × 4 | 3 × 6 + 1 × 4 |

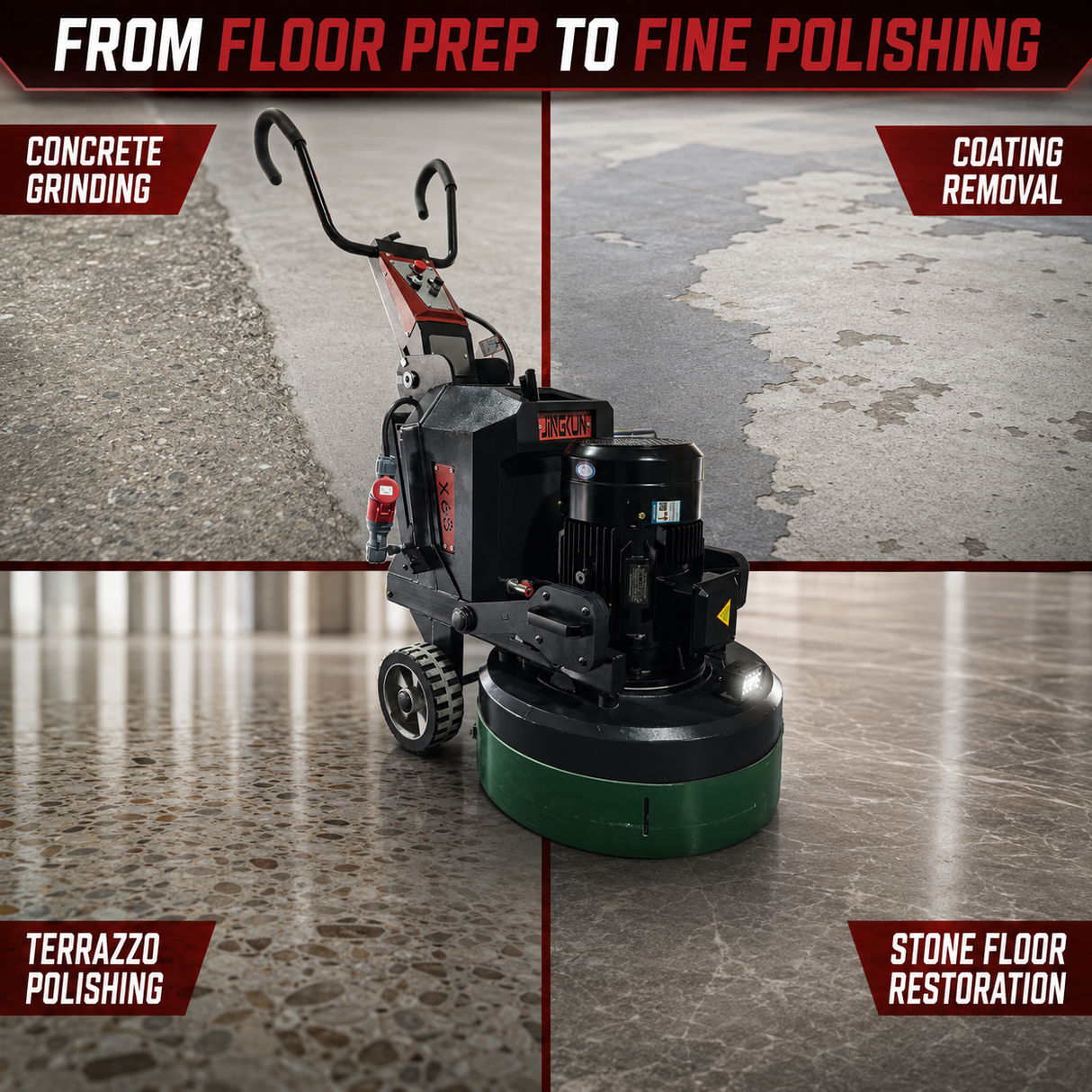

From Surface Preparation to Polishing
Frequently Asked Questions
Which model should I choose?
Choose the 680 for a more compact 390kg platform, the 750 for greater width and a 15kW motor, or the 850 for the widest 850mm path and highest 560kg operating weight. Floor area, transport access, available power and required productivity should determine the choice.
What electrical supply is required?
The supplied specification lists 380V three-phase power for all three models. Confirm local frequency, plug type, breaker capacity and cable requirements before purchase.
Can the machine both grind and polish?
Yes, when fitted with compatible plates, diamond tools and polishing pads. Tool choice and operating sequence must match the floor material and target finish.
Are grinding tools and polishing pads included?
Do not assume that consumables are included. Request a written packing list confirming the remote handset, tool plates, weights, power cable, accessories, spare parts and consumables.
How is this machine shipped?
This is a 390–560kg freight item. Final freight cost, packaging, unloading requirements and delivery lead time should be confirmed for the destination before the order is finalized.
Confirm the Right Model Before Ordering
Send your floor material, project area, required finish, site voltage/frequency, destination and preferred working width. We will confirm the recommended model, tooling configuration, packing list and freight quotation.
